Dell Pro Smart Dock SD25 - 180W

Get the power and agility to work your way with the latest smart dock featuring up to 130W USB-C power delivery and remote management capabilities.

Technical Information
Connectivity Technology Wired
Number of Displays Supported 4


Video
Video Resolution
DP1.4 without Display Stream Compression
Up to:
4 x HD (3840x2160) @ 60Hz
3 x FHD (1920x1080) @ 60Hz
2 x QHD (2560x1440) @ 60Hz
1 x 4K (3840 x 2160) @ 60Hz

DP1.4 with Display Stream Compression
4 x WQHD (3440 x 1440) @ 60Hz
3 x WQHD (3440 x 1440) @ 60Hz
2 x 5K (5120 x 2160) @ 60Hz
1 x 6K (6144 x 3456) @ 60Hz

Power Description
Maximum Power Supply Wattage 180W

Network & Communication
Ethernet Technology RJ45 Ethernet port, 2.5GbE

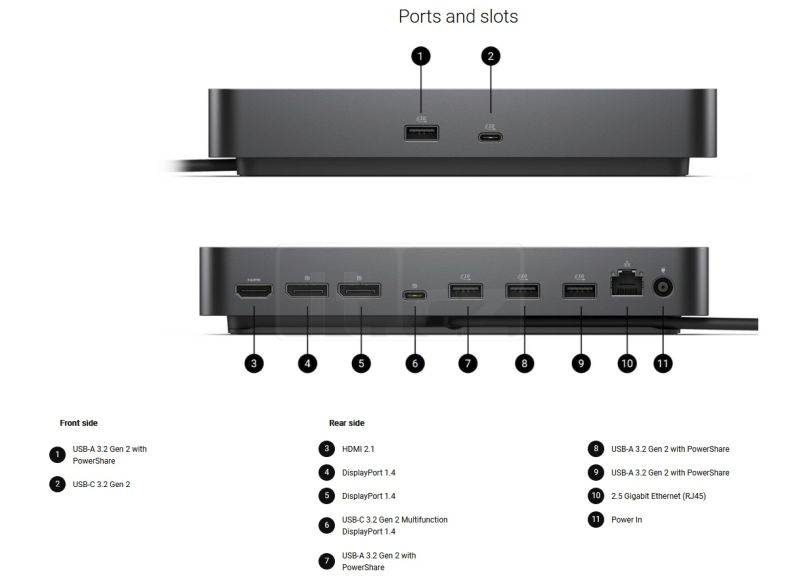

nterfaces/Ports
Interfaces
Video interfaces
2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)
4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)
4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

USB Power Delivery 96W

Software
Operating System Supported
Windows 10
Windows 11
Ubuntu
Red Hat Enterprise Linux
ChromeOS
macOS

Physical Characteristics
Height 205mm
Width 90mm
Depth 35.25mm
Weight (Approximate) 562 g
