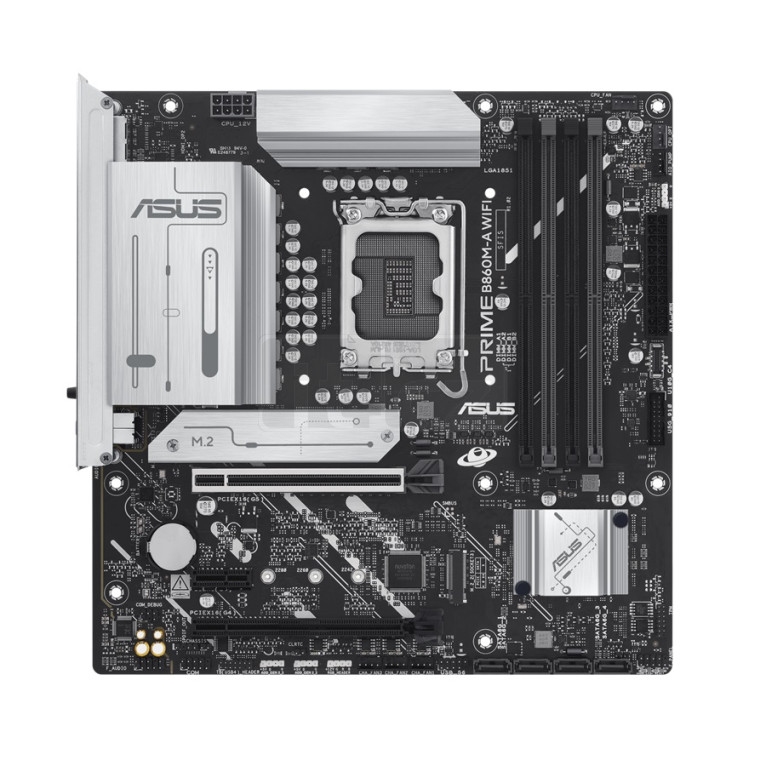

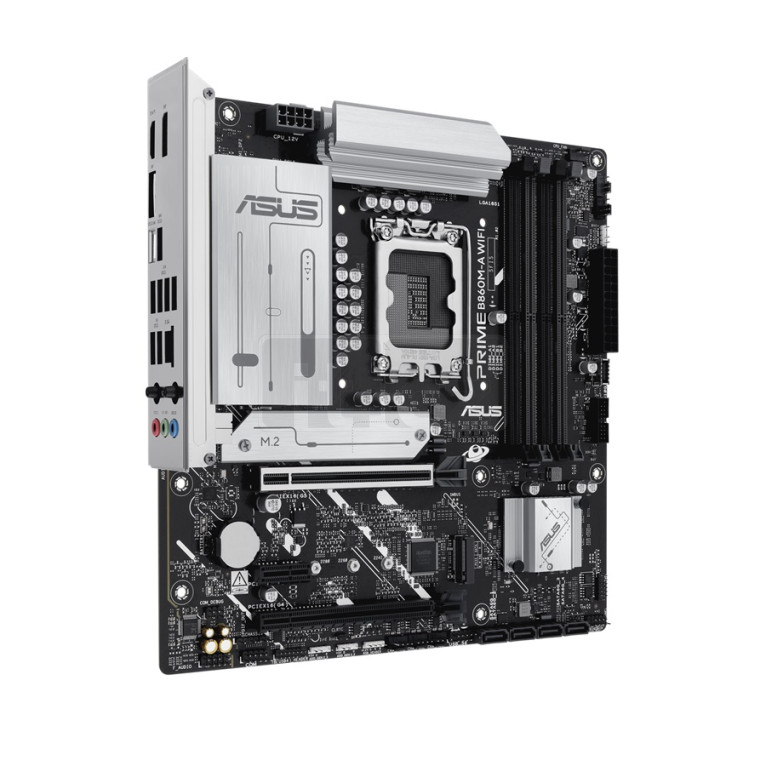

ASUS PRIME B860M-A WIFI
* mATX Form Factor
CPU: Support Intel® Core™ Ultra Processors (Series 2) ,
LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel®
Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť:
4 x sloty DIMM, max. 192 GB, DDR5 - Podporuje až 8400+MT/s (OC),
Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
*Dvoukanálová paměťová architektura
*DIMM Fit
*Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
*ASUS Enhanced Memory Profile III(AEMPIII)
Grafické porty:
*2 x DisplayPort
*1 x HDMI™ port
Rozšiřující sloty:
Intel® Core™ Ultra Processors(series 2)
*1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x1 slot
Úložný prostor:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)
*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4
mode)
Intel® B860 Chipset
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4
modes)
*4 x SATA 6Gb/s ports
Ethernet:
*1 x Realtek 2.5Gb Ethernet
*ASUS LANGuard
Připojení a Bluetooth:
*Wi-Fi 6E
*2x2 Wi-Fi 6E (802.11ax)
*Supports 2.4/5/6GHz frequency band
*Bluetooth® v5.3**
USB:
Zadní USB (Total 7 ports)
*1 x USB 20Gbps port (1 x USB Type-C®)
*1 x USB 10Gbps port (1 x Type-A )
*2 x USB 5Gbps ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
Přední USB (Total 7 ports)
*1 x USB 10Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
*Supports: Jack-detection, Multi-streaming, Front Panel
Jack-retasking
*Supports up to 24-Bit/192 kHz playback
Audio Features
*Audio Shielding
*Premium audio capacitors
*Dedicated audio PCB layers

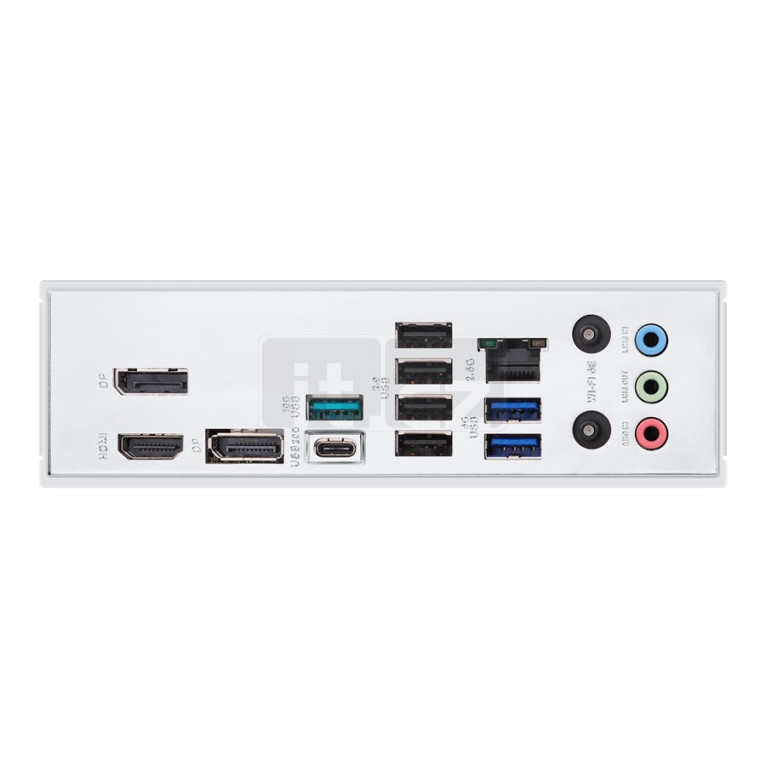

Vstupy/výstupy zadního panelu:
*1 x USB 20Gbps port (1 x USB Type-C®)
*1 x USB 10Gbps port (1 x Type-A)
*2 x USB 5Gbps ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A )
*2 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Realtek 2.5Gb Ethernet port
*3 x Audio jacks
Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector
Úložiště:
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 10Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports
Různé:
*3 x Addressable Gen 2 headers
*1 x Aura RGB header
*1 x Clear CMOS header
*1 x Chassis Intrusion header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x S/PDIF Out header
*1 x SPI TPM header (14-1 pin)
*1 x 10-1 pin Front System Panel header
*1 x Thunderbolt™ (USB4®) header

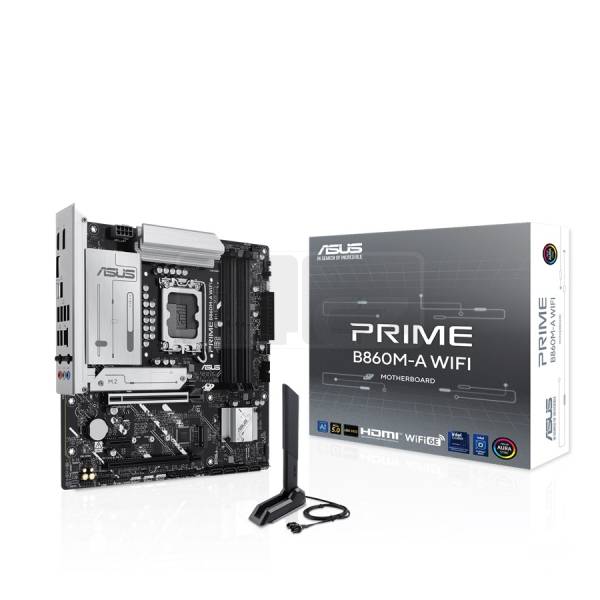

Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*1 x M.2 rubber package
*1 x Screw package for M.2 SSD
Dokumenty:
*1 x Quick start guide
Parametry a specifikace:
Konektory
2x USB 3.0
HDMI
Obecné
Formát ATX:
Micro ATX
Počet LAN portů:
1x LAN port
RAID:
ano
Wi-Fi:
Wi-fi
XMP:
Ano
Počet slotů pro RAM:
4x
