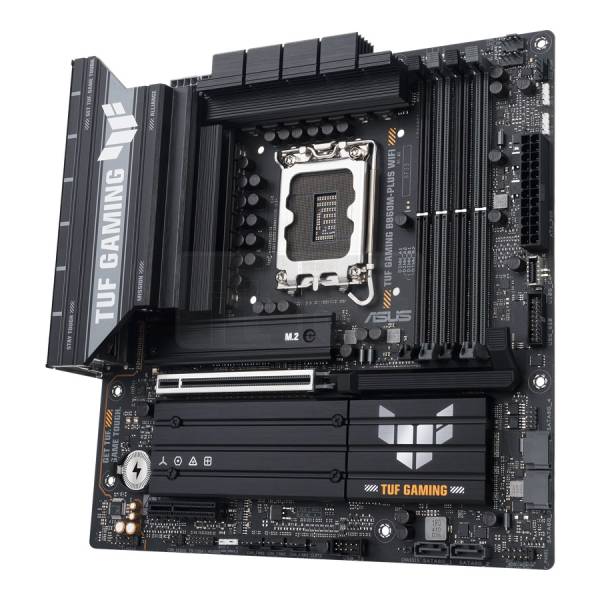

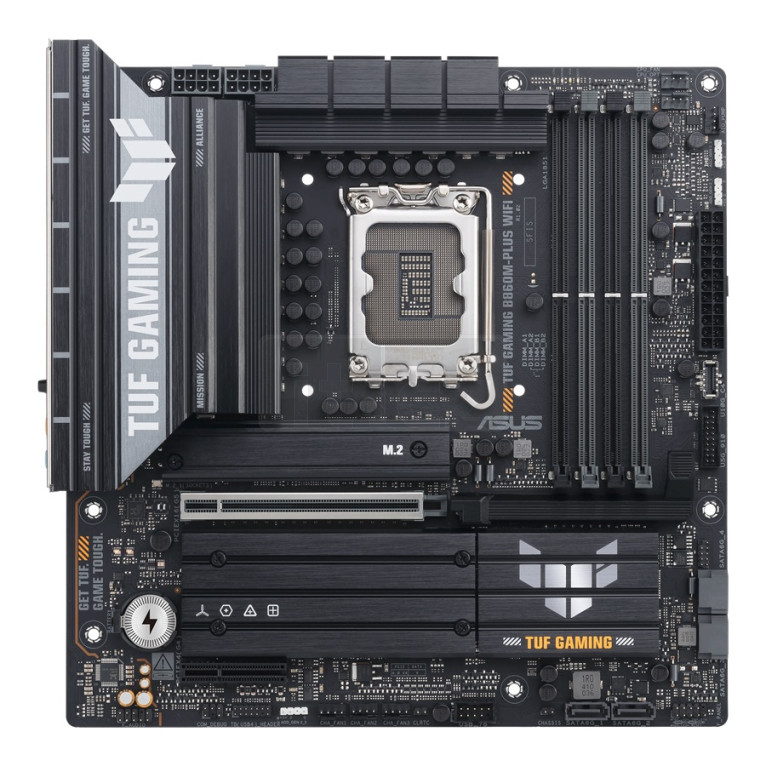

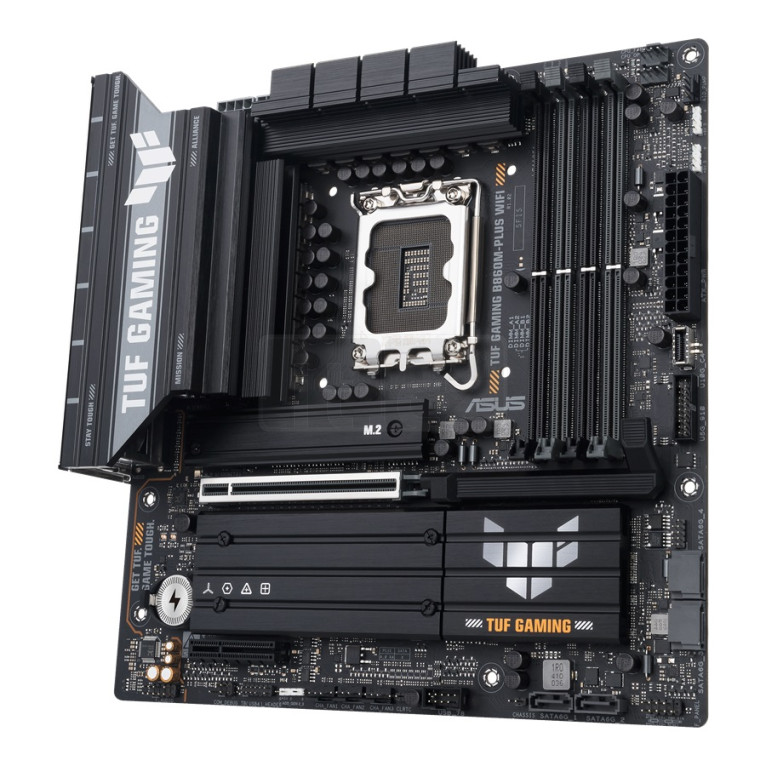

ASUS TUF GAMING B860M-PLUS WIFI
* mATX Form Factor
CPU: Support Intel® Core™ Ultra Processors (Series 2) -
LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel®
Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až
8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM
(CUDIMM)
*Dvoukanálová paměťová architektura
*Osazení DIMM
*Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
*ASUS Enhanced Memory Profile III(AEMPIII)
Grafické porty:
*1 x DisplayPort
*1 x HDMI™ port
*1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video
output
Rozšiřující sloty:
Intel® Core™ Ultra Processors(series 2)
*1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
*1 x PCIe 4.0 x4 slot
Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors(series 2)
*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4
mode)
*M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
*4 x SATA 6Gb/s ports
Ethernet:
*1 x Realtek 2.5Gb Ethernet
*TUF LANGuard
Připojení a Bluetooth:
*Wi-Fi 7*
*2x2 Wi-Fi 7 (802.11be)
*Supports 2.4/5/6GHz frequency band
*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer
rate.
*Bluetooth® v5.4
USB:
Zadní USB (Total 7 ports)
*1 x USB 20Gbps port (1 x USB Type-C®)
*2 x USB 10Gbps ports (2 x Type-A)
*4 x USB 5Gbps ports (4 x Type-A)
*1 x USB 2.0 port (1 x Type-A)
Přední USB (Total 7 ports)
*1 x USB 10Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 headers support 2 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
*Supports: Jack-detection, Multi-streaming, Front Panel
Jack-retasking
*Supports up to 24-Bit/192 kHz playback
Audio Features
*Audio Shielding
*Rear optical S/PDIF out port
*Premium audio capacitors
*Dedicated audio PCB layers

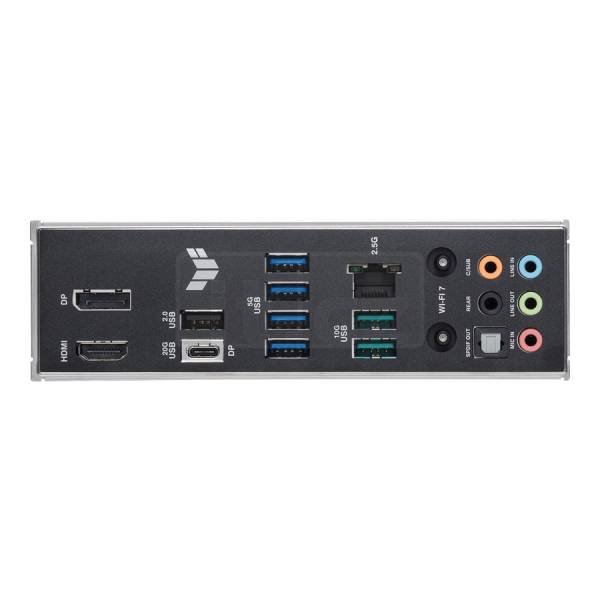

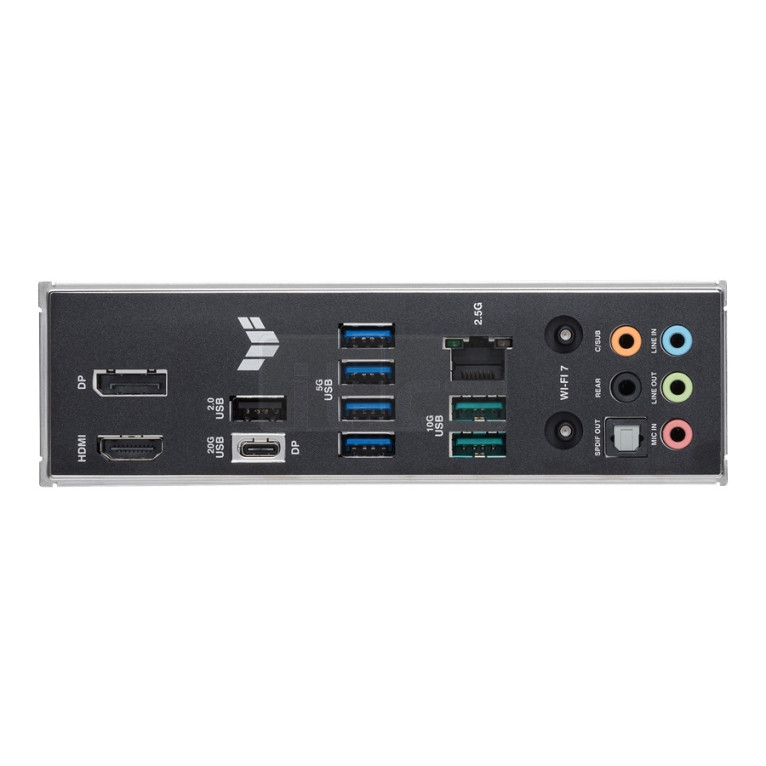

Vstupy/výstupy zadního panelu:
*1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
*2 x USB 10Gbps ports (2 x Type-A)
*4 x USB 5Gbps ports (4 x Type-A)
*1 x USB 2.0 port (1 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi Module
*1 x Realtek 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port
Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*2 x 8-pin +12V CPU Power connectors
Úložiště:
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 10Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 port
Různé:
*3 x Addressable Gen 2 headers
*1 x Clear CMOS header
*1 x Chassis Intrusion header
*1 x Front panel audio header (F_AUDIO)
*1 x 10-1 pin Front System Panel header
*1 x Thunderbolt™ (USB4®) header
Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*2 x M.2 Rubber Packages
*1 x TUF Gaming sticker
*1 x Screw package for M.2 SSD
Dokumenty:
*1 x Quick start guide
Parametry a specifikace:
Konektory
4x USB 3.0
HDMI
Obecné
Formát ATX:
Micro ATX
Počet LAN portů:
1x LAN port
RAID:
ano
Wi-Fi:
Wi-fi
XMP:
Ano
Počet slotů pro RAM:
4x
