- Lenovo ThinkSystem SR680a V3 – 3 Year Warranty with Controlled GPU
email: obchod@it.cz
generováno: 08.04.2025 23:53

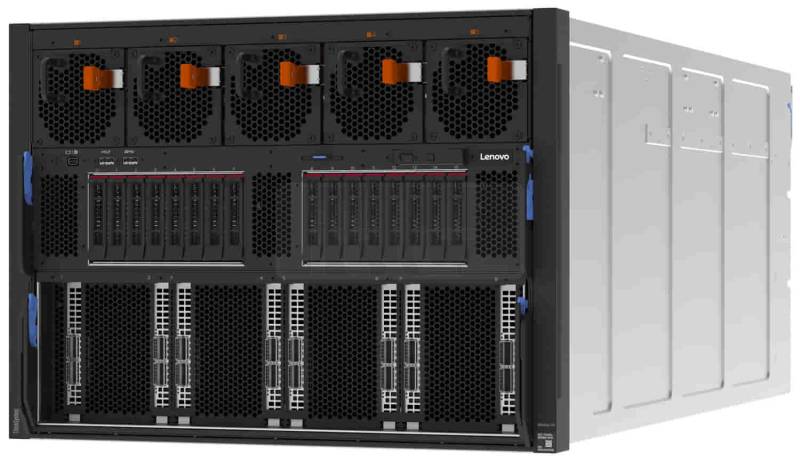

Lenovo ThinkSystem SR680a V3 – 3 Year Warranty with Controlled GPU
Rack, Intel® Xeon™
Vaše cena bez DPH
1 100 988 Kč
Vaše cena s DPH
1 332 195 Kč
Běžná cena 1 815 000 Kč
Ušetříte 482 805 Kč (27%)
Momentálně nedostupné
Předběžný termín dodání 12. 5. 2025
Předběžný termín dodání 12. 5. 2025
| Objednací kód | 10085770 |
| Záruka a servis | 36 měsíců |
| Kód výrobce | 7DHECTO1WW |
Popis
dostupné pouze jako CTO, cena dle konfigurace
Machine types 7DHE - 3 year warranty
Form factor 8U rack.
Processor Two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"). Supports a processor with 64 cores, core speed of 2.3 GHz, and TDP rating of 350W. Supports PCIe 5.0 for high performance I/O.
Chipset Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream"
GPUs Choice of:
Eight NVIDIA H100 700W SXM5 GPUs with 80GB HBM3 GPU memory per GPU
Eight NVIDIA H200 700W SXM5 GPUs with 141GB HBM3 GPU memory per GPU
Memory 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4400 MHz at 2 DPC.
Memory maximum Up to 4TB with 32x 128GB RDIMMs
Persistent memory Not supported.
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring.
Disk drive bays Up to 16x 2.5-inch hot-swap drive bays, supporting PCIe 5.0 NVMe drives.
OS boot drives Support for two M.2 drives with optional Intel VROC NVMe RAID support for OS boot and data storage functions
Maximum internal storage 245.76TB using 16x 15.36TB 2.5-inch NVMe SSDs
Storage controller Onboard NVMe (Non-RAID)
Network interfaces Supports 8x high-performance network adapters up to 400 Gb/s connectivity with GPU Direct support. Supports a NVIDIA BlueField-3 2-port 200Gb adapter for the User/Control Plane and a Mellanox ConnectX-6 Lx 2-port 10/25GbE adapter for management.
PCI Expansion slots 10x PCIe 5.0 x16 slots:
Front: 8x PCIe 5.0 x16 FHHL slots with GPU Direct support
Rear: 2x PCIe 5.0 x16 FHHL slots
Ports Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), 1x Mini DisplayPort video port.
Rear: 2x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management.
Cooling 5x front-mounted dual-rotor fans for the CPU and storage subsystem, N+1 redundant. 10x rear-mounted dual-rotor fans for the GPU subsystem, N+1 redundant. One fan integrated in each power supply. Front-to-rear airflow.
Power supply Eight hot-swap redundant AC power supplies with up to N+N redundancy. 80 PLUS Titanium certification. 2600 W AC power supplies requiring 220 V AC supply.
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Two video ports (front Mini DisplayPort and rear VGA); both can be used simultaneously if desired. Maximum resolution of both ports is 1920x1200 at 60Hz.
Hot-swap parts Drives, power supplies, and fans.
Systems management Integrated Diagnostics Panel with status LEDs and pull-out LCD display. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller (BMC). Dedicated rear Ethernet port for XCC2 remote access for management. XClarity Administrator for centralized infrastructure management, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC Platinum to enable remote control functions and other features.
Security features Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).
Operating systems supported Ubuntu Server. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions Width: 447 mm (17.6 in.), height: 351 mm (13.8 in.), depth: 924 mm (36.3 in.). See Physical and electrical specifications for details.
Weight Maximum: 102.9 kg (226.8 lbs)
LenovoPress - https://lenovopress.lenovo.com/lp1909-thinksystem-sr680a-v3-server
Počet pozic 3,5" externí: 0
Hot-plug zdroj: Ano
Machine types 7DHE - 3 year warranty
Form factor 8U rack.
Processor Two 5th Gen Intel Xeon Scalable processors (formerly codenamed "Emerald Rapids"). Supports a processor with 64 cores, core speed of 2.3 GHz, and TDP rating of 350W. Supports PCIe 5.0 for high performance I/O.
Chipset Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream"
GPUs Choice of:
Eight NVIDIA H100 700W SXM5 GPUs with 80GB HBM3 GPU memory per GPU
Eight NVIDIA H200 700W SXM5 GPUs with 141GB HBM3 GPU memory per GPU
Memory 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs are supported. DIMMs operate at up to 5600 MHz at 1 DPC and up to 4400 MHz at 2 DPC.
Memory maximum Up to 4TB with 32x 128GB RDIMMs
Persistent memory Not supported.
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring.
Disk drive bays Up to 16x 2.5-inch hot-swap drive bays, supporting PCIe 5.0 NVMe drives.
OS boot drives Support for two M.2 drives with optional Intel VROC NVMe RAID support for OS boot and data storage functions
Maximum internal storage 245.76TB using 16x 15.36TB 2.5-inch NVMe SSDs
Storage controller Onboard NVMe (Non-RAID)
Network interfaces Supports 8x high-performance network adapters up to 400 Gb/s connectivity with GPU Direct support. Supports a NVIDIA BlueField-3 2-port 200Gb adapter for the User/Control Plane and a Mellanox ConnectX-6 Lx 2-port 10/25GbE adapter for management.
PCI Expansion slots 10x PCIe 5.0 x16 slots:
Front: 8x PCIe 5.0 x16 FHHL slots with GPU Direct support
Rear: 2x PCIe 5.0 x16 FHHL slots
Ports Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management), 1x Mini DisplayPort video port.
Rear: 2x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x RJ-45 1GbE systems management port for XCC remote management.
Cooling 5x front-mounted dual-rotor fans for the CPU and storage subsystem, N+1 redundant. 10x rear-mounted dual-rotor fans for the GPU subsystem, N+1 redundant. One fan integrated in each power supply. Front-to-rear airflow.
Power supply Eight hot-swap redundant AC power supplies with up to N+N redundancy. 80 PLUS Titanium certification. 2600 W AC power supplies requiring 220 V AC supply.
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Two video ports (front Mini DisplayPort and rear VGA); both can be used simultaneously if desired. Maximum resolution of both ports is 1920x1200 at 60Hz.
Hot-swap parts Drives, power supplies, and fans.
Systems management Integrated Diagnostics Panel with status LEDs and pull-out LCD display. XClarity Controller 2 (XCC2) embedded management based on the ASPEED AST2600 baseboard management controller (BMC). Dedicated rear Ethernet port for XCC2 remote access for management. XClarity Administrator for centralized infrastructure management, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC Platinum to enable remote control functions and other features.
Security features Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).
Operating systems supported Ubuntu Server. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions Width: 447 mm (17.6 in.), height: 351 mm (13.8 in.), depth: 924 mm (36.3 in.). See Physical and electrical specifications for details.
Weight Maximum: 102.9 kg (226.8 lbs)
LenovoPress - https://lenovopress.lenovo.com/lp1909-thinksystem-sr680a-v3-server
Parametry a specifikace:
Procesor
Intel® Xeon™ Max. počet CPU: 2RAM paměť
Počet slotů pro RAM: 32xDisk / úložiště
Maximální počet HDD: 16Sloty
Slot PCIe: AnoPočet pozic 3,5" externí: 0
Zdroj
Podpora Hot-plug: AnoHot-plug zdroj: Ano
